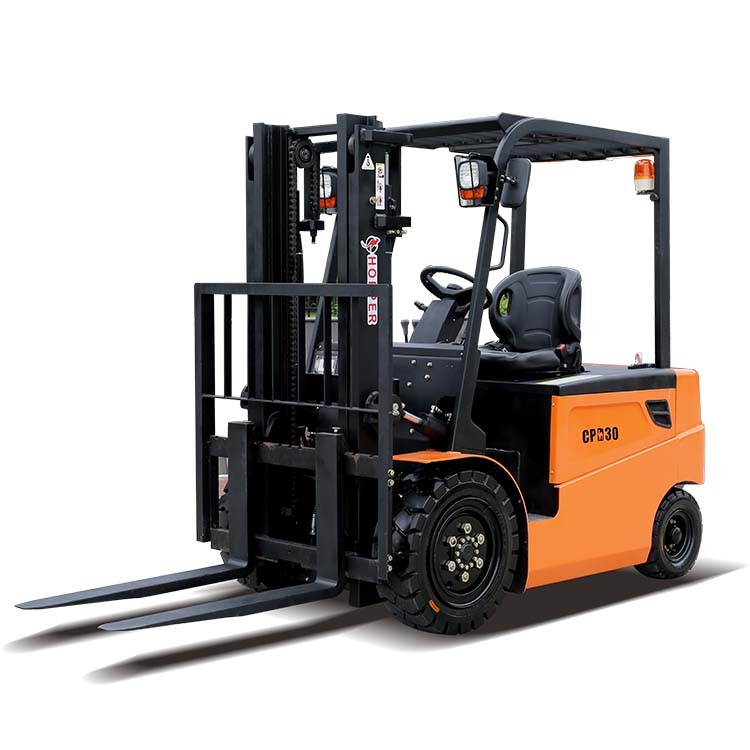

Load capacity/Rated load:3500KG
Overall length (Cargo fork):3735MM
Overall width:1220MM
Travel speed(aden/unladen):14/15 KM/H
Imported CURTIS controller
| MODEL NO. | CPD35 | |||
| Maximum load capacity | Q | kg | 3500 | |
| Overall length ( No fork) | L' | mm | 2660 | |
| Overall length (Cargo fork) | L | mm | 3735 | |
| Overall width | W | mm | 1220 | |
| Height, mast lowered | H1 | mm | 2085 | |
| Height of overhead guard(cabin) | H4 | mm | 2250 | |
| Height, mast extended | H2 | mm | 4225 | |
| Ground clearance, laden, below mast | H5 | mm | 145 | |
| Ground clearance,unladen/laden,centre of wheelbase | H7 | mm | 135 | |
| Front tread | W3 | mm | 1005 | |
| Rear tread | W2 | mm | 990 | |
| Wheelbase | L1 | mm | 1690 | |
| Front overhang | L2 | mm | 500 | |
| Lift height | H | mm | 3000 | |
| Free lift height | H3 | mm | 130 | |
| Mast tilt angle, front/rear | α/β | ° | 44724 | |
| Max.lift speed | unladen | mm/s | 340 | |
| laden | mm/s | 220 | ||
| Max. travel speed | unladen | km/h | 14 | |
| laden | km/h | 13 | ||
| Turning radius | R | mm | 2355 | |
| Max. gradability,laden | % | 15 | ||
| Load centre distance | C | mm | 500 | |
| Curb weight(with battery) | kg | 5130 | ||
| Tyre | Front | 28×9-15-14PR | ||
| Rear | 18*7-8 | |||
| Motor | Drive | KW | AC11 | |
| Lift | KW | DC14 | ||
| Battery | V/Ah | 72/550 | ||
| Type of drive control | AC drive system, DC lifting system | |||
| Aisle width for lengthways | 800*1000 | mm | 4255 | |
| Aisle width for lengthways | 1000*1200 | mm | 4125 | |
| Container quantity(1*20GP/40HQ) | 20GP/40HQ | units | 44596 | |
